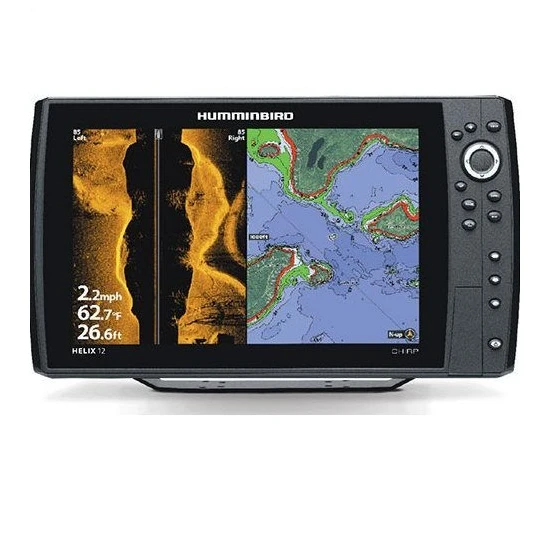

Sonar Humminbird Helix 12 Chirp Mega Si Gps G2n

Sonar Humminbird Helix 12 Chirp Mega SI GPS G2N

Sonarul HELIX 12 CHIRP MEGA SI GPS G2N are un ecran de 10.1" iluminat cu led-uri, si posibilitateade scanare atat verticala cat si lateralala adancimi si unghiuri foarte mari.
Include cartografierea cu GPS, functia Bluetooth, posibilitatea de retea Ethernet, scanarea automata si realizarea de harti in timp real cu adancime, vegetatie si structura substratului.

Specificatii:

    Display Size - Diagonal:10.1"
    Display Pixel Matrix:1280H x 800V
    Display Type:Color TFT
    Display Colors Grayscale:16-bit
    Sonar Standard:MEGA Side Imaging/MEGA Down Imaging, CHIRP Digital Sonar/DualBeam PLUS
    Standard Sonar Coverage:20°, 60° & (2) 86° & (2) 55° @ -10db (Total of 180°)
    Standard Sonar Frequency:83/200/455/800 kHz & 1.2 MHz
    Sonar Optional:50kHz, 50/Low Airmar CHIRP
    Target Separation:2.5"
    Power Output RMS:1000 Watts*
    Power Output Peak to Peak:8000 Watts*
    Depth Capability:125 ft(DI) 400 ft(DI-455kHz)1500 ft, 3500 ft
    Temperature:Built-In Transducer
    Speed:GPS Speed Included
    Backlight:LED
    Unit Size - Gimbal Mount:14.86"W x 8.90"H x 4.11"D
    Mount A Type:Gimbal Mount
    Unit Size - Indash Mount:14.86"W x 8.52"H x 3.90"D
    Mounting Options:Optional In-Dash Mounting Kit
    Transducer Standard:XM 9 20 MSI T
    Transducer Mounting:Transom
    Power Input:10.8-20 VDC
    Power Draw:3.0 Amps
    GPS Receiver:Included
    GPS Tracking:Included
    GPS Chartplotting:Included
    Waypoints, Routes, Tracks/Points:2,750, 47, 50/20,000
    Precision GPS:Included
    SwitchFire Sonar:Included
    Screen Snap Shot:Included
    Sonar Recording:Included
    Humminbird PC:Included
    Upgradable Internal Software:Included
    Split Screen Zoom:Included
    Split Screen Bottom Lock: Included
    3D Chart View:Included
    Large Digits View:Included
    Wide/Narrow Cone Split Screen:Included
    Custom View Selections:Included
    Custom Digital Readout:Included
    View Preset Keys:Included
    Temperature Graph:Included
    Temperature Alarm:Included
    Freeze Frame:Included
    Instant Image Update:Included
    Mark Structure on Sonar:Included
    Selective Fish ID+:Included
    Real Time Sonar:Included
    Triplog:Included
    X-Press Menu System:Included
    Card Reader Available:Yes
    Card Slots:2
